Air-Vac Product Line

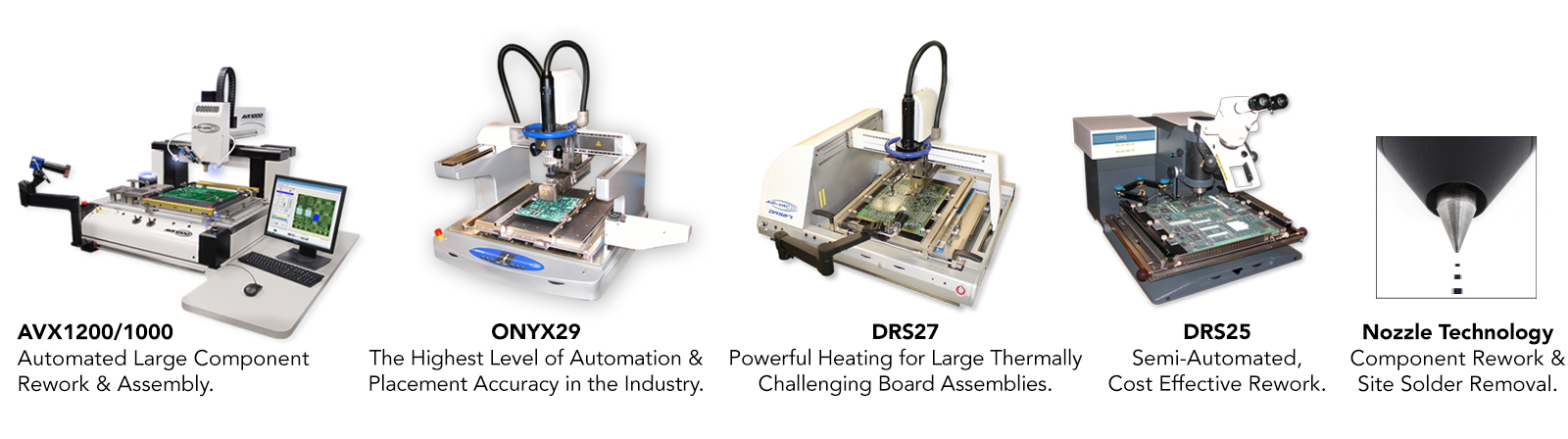

Surface Mount Rework &
Assembly Systems

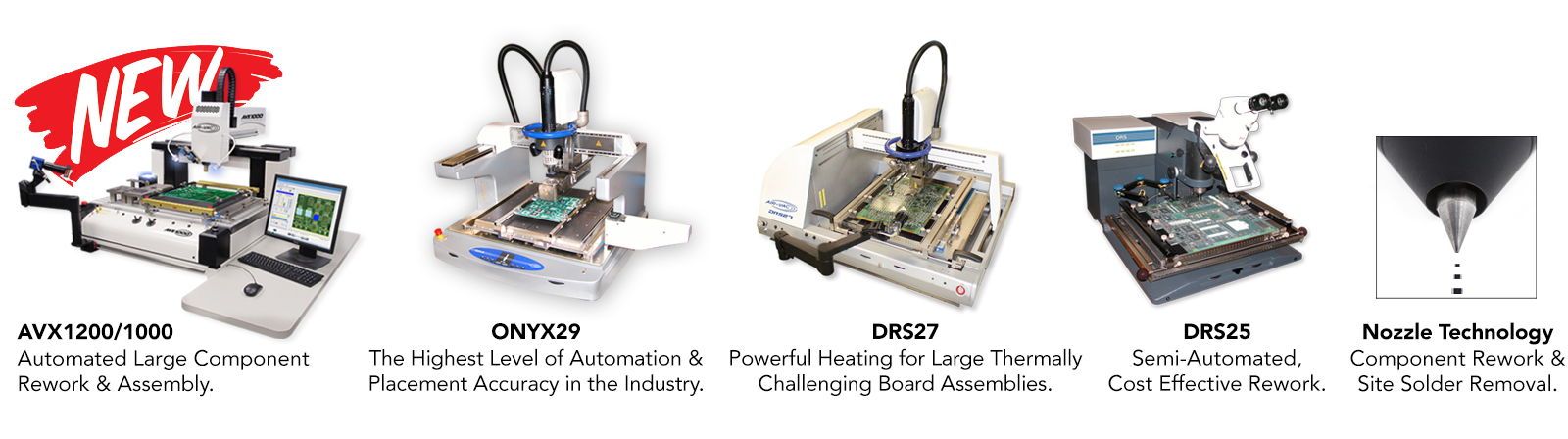

DRS25 SMT Rework

The DRS25 is a high performance, mid-range industrial standard for lead-free rework and repair of BGA's, CSP's, Flip Chip, 0201's and more.

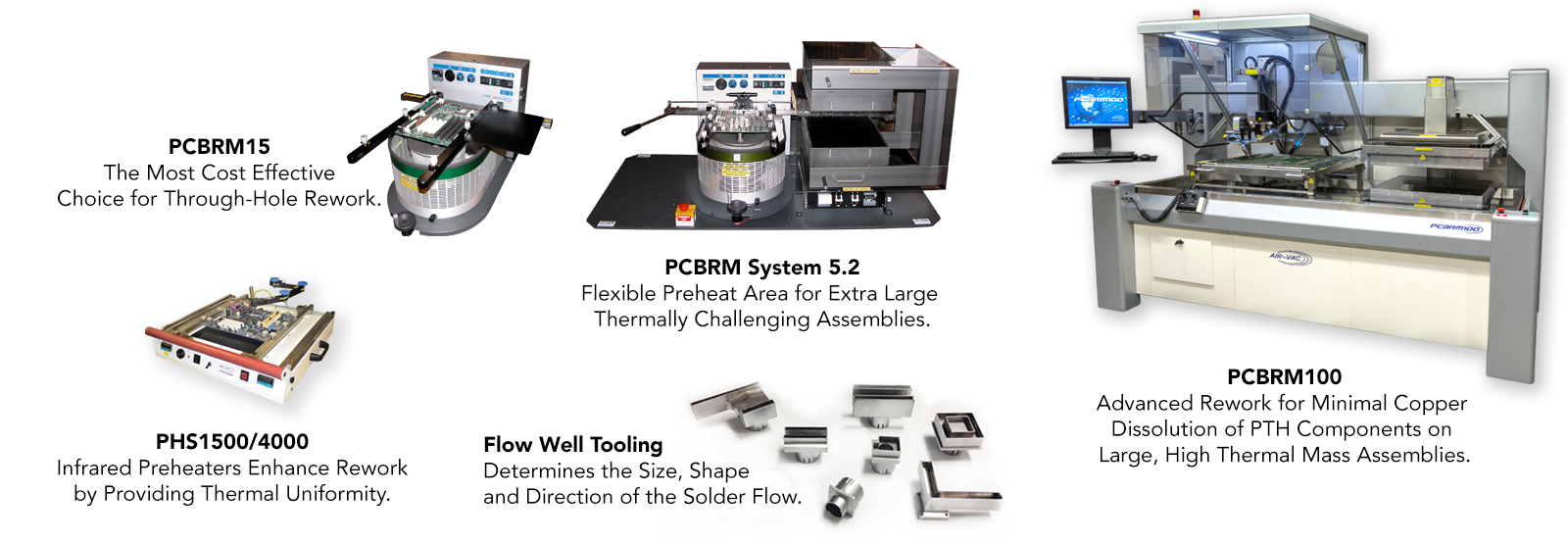

Through-Hole Rework & Selective Soldering Systems

PCBRM15 Through Hole Rework

The PCBRM15 is the most cost effective choice for lead-free and tin lead through hole rework and selective soldering


Microelectronics Assembly & Dispensing Systems

ONYX29 Die Bonder

The ONYX29 Die Bonder is an ultra precision, semi-automated die assembly and bonding "benchtop" system.

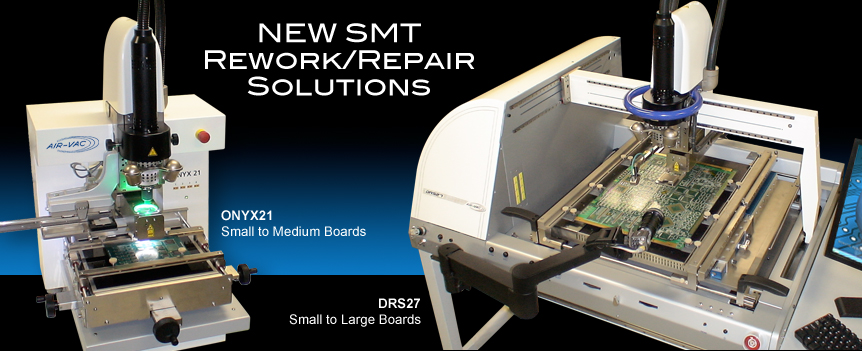

DRS27 SMT Rework

The DRS27 is a large board BGA/SMT rework machine with 70mm to 125mm vision alignment and a high efficiency IR preheater.

PHS PCB Preheater

The PHS Stand Alone Preheaters greatly improve rework for hand tools and mini wave modules. Great for lead-free or heat sink assemblies.

ONYX500 Micro Dispensing

The ONYX500DS is a multi-functional desktop dispensing system with high precision accuracy.



The DRS27 "XLT" has the same features as the standard DRS27 but adds extra room for high mass and extra large assemblies.

PCBRM System Through Hole Rework

PCBRM System 5.2/5.2DSP
The PCBRM Systems have the same features as the PCBRM15 module but add a flexible preheat area for extra large boards up to 20" x 20".

ONYX500 Micro Assembly

ONYX500 Benchtop
The ONYX500 Benchtop is an ultra precision, low volume microelectronics assembly, dispensing, and prototyping system.


ONYX29 SMT Rework

The ONYX29 is a high performance, robotic SMT rework, assembly and production system with unparalleled automation.

PCBRM100 Through Hole Rework

The PCBRM100 is the "Next Generation Solder Fountain Technology" system for lead-free rework of PTH components on large, high thermal mass assemblies.

ONYX500 Micro Assembly Cell

ONYX500/520 Production Cell
The ONYX500/520 Cell is a highly automated, customer specific, micro assembly, dispensing, eutectic and ultrasonic bonding production system.


BGA Rework Nozzles

Nozzle Tooling
For SMT component removal and site cleaning. Standard and Micro Nozzles for DRS25, DRS27 and ONYX29 Systems.

Through Hole Rework Flow Wells

Flow Well Tooling
Flow Wells match the lead pattern and determine the size, shape and direction
of solder flow on PCBRM models.

ONYX500 End Effectors

ONYX500 Component Matrix
Platforms, assembly and dispense heads, nozzle stations, stack tray feeder unit, transport systems and more.



0ther Marketplace Product Lines:


Vacuum Desoldering Tools for Through Hole Components
The PVSG Vacuum Delsodering Hand Tool removes molten solder from through hole component leads.




Vacuum Handling

Vacuum Pick Up Systems for Handling of Small Parts
Instantaneous pick up and release of small parts with fingertip control.




Vacuum Pumps

Air-Operated Vacuum Generators
Air-Vac designs and builds custom Vacuum Venturi Pumps to meet your specific requirements.
